You are standing in the dim washroom, gripping a screwdriver with aching fingers, listening to the heavy, mocking silence of a tripped breaker.
The faint, metallic scent of ozone and old drywall dust lingers near the baseboards. You just wanted to swap out that yellowed, cracked receptacle for a crisp, modern GFCI. You did everything by the book. You took a reference photo on your phone. You matched the black wire to the brass screw, the white to the silver, twisting the marrettes exactly as they were on the old plug. You folded the stiff copper back into the tight plastic box, wiped your hands, and flipped the breaker back on at the hydro panel, only to be met with a sharp, immediate snap.
The Memory Trap and the Flow of the River
The most common myth in home electrical repairs is the assumption of visual inheritance. We believe that if we copy the exact physical layout of the old outlet, the new one will function perfectly. This is the memory trap. A standard receptacle does not care where the power comes from; it is essentially a dumb terminal. But a Ground Fault Circuit Interrupter does not behave like a standard plug. It is an active sentinel, and it operates strictly on direction.
Think of household electrical current as a fast-moving river. A standard outlet just drinks from the river wherever it passes. A GFCI, however, builds a highly sensitive monitoring station across it. If you hook up the incoming water to the exhaust pipes, the station floods and shuts down to protect itself. This is the critical, non-negotiable difference between the ‘Line’ and the ‘Load’ terminals. Swapping wires exactly as they were ignores this mechanism entirely.

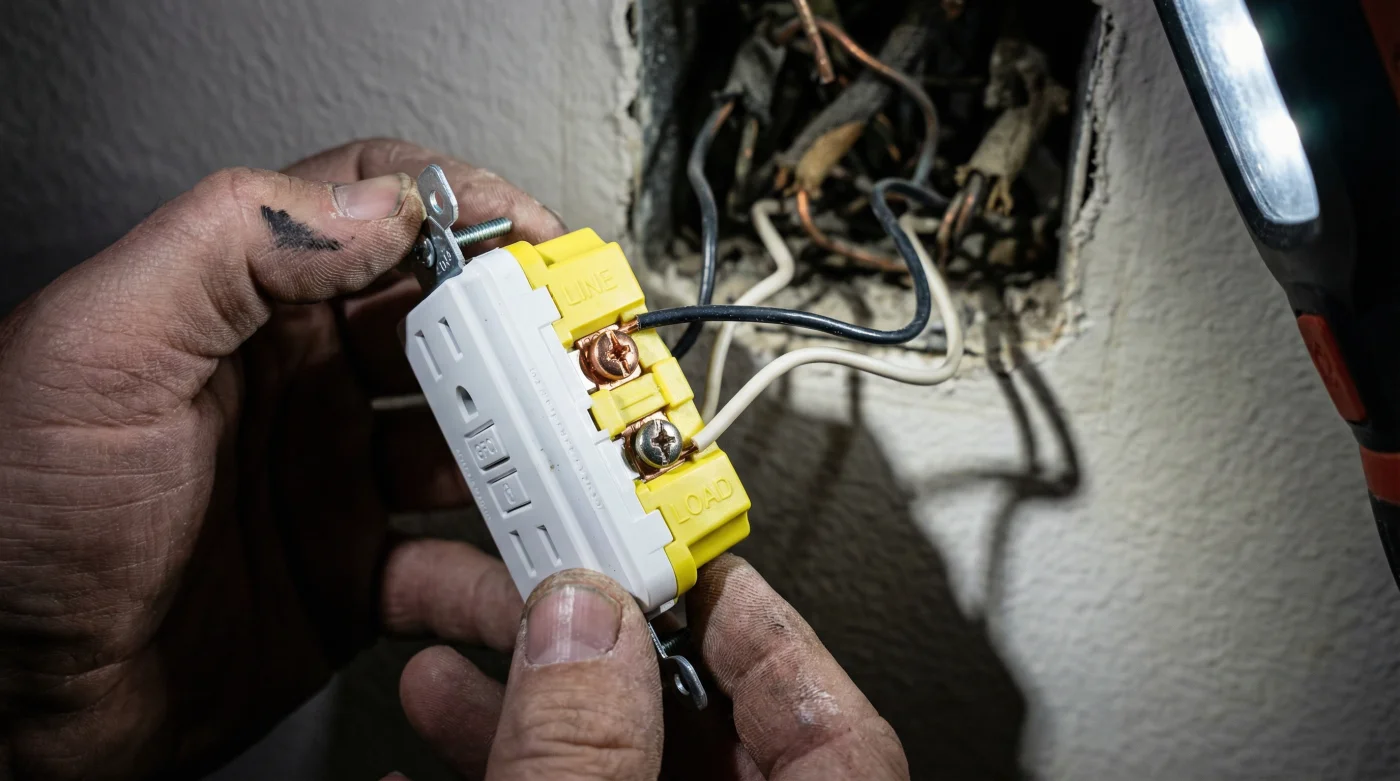

I learned this the hard way during a kitchen renovation in an older home outside Halifax. It was late November, the kind of wet, bone-chilling afternoon that makes you rush to finish the job. I was staring at a nest of identical, faded copper wires, bewildered by the constant breaker trips. Gord, a veteran journeyman electrician with hands like worn leather, stopped by. He watched me struggle for a moment, then held up the new GFCI, pointing to the yellow warning tape covering half the screws.
‘You are treating the river like a pond,’ he told me, handing over a double-double. ‘Line is the water coming straight from the hydro panel. Load is the water flowing downstream to the next plug in the room. If you feed the panel power into the Load side, the GFCI panics. It trips instantly because it cannot protect what it cannot filter. The old wires do not matter. You have to find the source.’
| Who You Are | The Core Frustration | The Benefit of Line Testing |
|---|---|---|
| The Weekend Renovator | Endless trips to the basement panel. | Saves hours of troubleshooting and prevents damaged hardware. |
| The Heritage Home Owner | Mystery wires with faded, identical insulation. | Creates an accurate map of actual power flow, ignoring misleading wire colours. |
| The Mindful Parent | Fear of electrical hazards near sinks. | Ensures the outlet actually cuts power in milliseconds during a fault. |
The Mindful Installation Process
- Bathroom exhaust fans ignite ceiling insulation without this annual vacuuming routine.
- Landscaping river rocks cost pennies purchasing directly from local aggregate quarries.
- Popcorn ceilings hide completely beneath stretched canvas and temporary tension rods.
- Brass hardware restores perfectly using standard household tomato ketchup acid.
- Contaminated gasoline ruins winter snowblowers across Ontario rural storage sheds.
First, separate all the exposed wires in the box. Cap each one individually with wire nuts and ensure no bare copper is touching the metal box or another wire. Walk down to the basement and flip the breaker back on. Return to the washroom with a reliable non-contact voltage tester, often called a sniffer pen.
Bring the plastic tip of the tester close to each capped black wire. One will cause the pen to beep rapidly and flash red. That is your Line feed. That is the source of the river. The other black wire, silent and dark, is the feed heading to the downstream Load.
Turn the breaker off again at the panel. Now, attach your marked Line wires strictly to the screws labeled ‘Line’ on the back of the GFCI. If you have downstream outlets that require ground fault protection, attach those to the ‘Load’ screws. If this is the only outlet on the run, leave the yellow tape exactly where it is over the Load screws.
| Mechanism | Specification | Real-World Meaning |
|---|---|---|
| Current Imbalance Detection | 4 to 6 milliamps | Trips if even a tiny fraction of power leaks to ground, such as through a wet hand. |
| Response Time | 25 milliseconds (0.025s) | Cuts the power faster than a human heartbeat, preventing serious injury. |
| Line vs. Load Segregation | Internal contact bridge | Ensures the sensory hardware processes incoming power before passing it to other outlets. |
Wiring for Longevity
Finding the line is only half the battle; how you physically connect the wires determines how long the outlet will last without arcing or failing. Older homes in Canada endure significant temperature shifts, and thermal expansion can loosen weak connections over time.
When wrapping the copper wire around the terminal screw, always wrap it clockwise. This ensures that as you tighten the screw down, it pulls the wire tighter around the post. Wrapping it counter-clockwise forces the wire to splay outward, creating a loose connection that generates dangerous heat.
| The Action | What to Look For | What to Avoid |
|---|---|---|
| Securing Wires | Wrapping solid copper tightly, clockwise around the terminal screw. | Using the backstab push-in holes, which loosen over time and cause invisible arcing. |
| Handling Multiple Wires | Creating a pigtail with a marrette to join multiple wires into a single feed. | Cramming two separate wires under a single screw, risking an unbalanced connection. |
| Testing the Finish | Pressing the Test button drops power audibly; Reset restores it with a click. | Assuming a green LED means downstream outlets are properly protected without manually checking them. |
The Quiet Assurance of the Right Connection
When you finally press that new GFCI into the wall, firmly secure the cover plate, and flip the breaker one last time, the silence in the room changes. It is no longer the heavy, frustrating silence of failure, but the quiet assurance of safety. You have not just swapped a piece of plastic; you have understood the unseen forces moving through the walls of your home.
By respecting the difference between the source and the stream, you grant yourself peace of mind. Every time you plug in a kettle, an electric razor, or a hair dryer near water, you know the invisible sentinel is watching over the circuit. You no longer have to hope the wiring is right. You tested the line. You respected the current. You know it is right.
“The wires behind the drywall do not care how they used to be connected. They only care where the power comes from today.” – Gord, Journeyman Electrician
Common Questions About GFCI Installations
Why does my new GFCI trip immediately upon resetting?
You likely connected the incoming power from the hydro panel to the Load terminals instead of the Line terminals. The outlet cannot process power backward.
Can I put a GFCI on a circuit with no ground wire?
Yes. A GFCI provides protection against shock even without a bare copper ground wire, but the cover plate must be labeled ‘No Equipment Ground.’
Do I need to hook up wires to the Load side?
Only if you want to protect standard outlets further down the exact same circuit. Otherwise, leave the Load side empty and covered.
How do I tell which wire is the line without a tester?
You cannot safely do this. A non-contact voltage tester or a multimeter is strictly mandatory to identify the live feed before touching bare copper.
Why did the old outlet work perfectly but the GFCI doesn’t?
Standard outlets do not monitor current direction or leakage. They function regardless of which set of screws receives the incoming power, often masking existing wiring flaws that the GFCI detects immediately.
